产品介绍

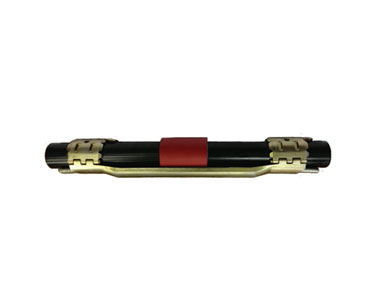

跨接箍保护器广泛应用于各种规格的API油管的接箍处,能够有效地保护井下多种规格的ESP动力电缆、控制线、集成管束、化学药剂注入管线等不受损伤,实现安全、快速、高效的地将保护线束固定并运送到井下
特点:
所有保护器采用化学药剂防腐与镀锌防腐,抗腐蚀能力更强;
每个夹紧夹各有两个预变形装置,使保护器与油管夹紧更牢固可靠;
保护管束通道弹性设计,是的管束夹紧可靠且不损伤管束;
锥销设计有防脱落凸点,可有效防止保护器脱离油管
材料可根据客户需求采用低碳钢或不锈钢。
并可根据不同工况要求设计开发多通道保护器,从而实现有效隔离多种管线。
规格:
Description |
Tube Size |
Cable Type |
Cable Size |
Cable Protector 2- 3/8R6-8 |
2-3/8" |
Round |
Ø6-8mm |
Cable Protector 2- 3/8F11/34 |
2-3/8" |
Flat |
11mm SQUARE |
Cable Protector 2- 3/8R32-34 |
2-3/8” |
Round |
Ø32-34mm |
Cable Protector 2- 7/8R6-8 |
2-7/8" |
Round |
Ø6-8mm |
Cable Protector 2- 7/8R30-33 |
2-7/8" |
Round |
Ø30-33mm |
Cable Protector 2- 7/8R34-37 |
2-7/8" |
Round |
Ø34-37mm |
Cable Protector 2- 7/8F11/34 |
2-7/8" |
Flat |
11mm SQUARE |
Cable Protector 2- 7/8F16-19/56 |
2-7/8" |
Flat |
16-19mm SQUARE |
Cable Protector 2- 7/8F16-19/70 |
2-7/8" |
Flat |
16-19mm SQUARE |
Cable Protector 3- 1/2R6-8 |
3-1/2" |
Round |
Ø6-8mm |
Cable Protector 3- 1/2R30-33 |
3-1/2" |
Round |
Ø30-33mm |
Cable Protector 3- 1/2R34-37 |
3-1/2" |
Round |
Ø34-37mm |
Cable Protector 3- 1/2R38-42 |
3-1/2" |
Round |
Ø38-42mm |
Cable Protector 3-1/2F11/34 |
3-1/2" |
Flat |
11mm SQUARE |
Cable Protector 3- 1/2F16-19/60 |
3-1/2" |
Flat |
16-19mm SQUARE |
Cable Protector 3- 1/2F19-23/70 |
3-1/2" |
Flat |
19-23mm SQUARE |
Cable Protector 4- 1/2R6-8 |
4-1/2" |
Round |
Ø6-8mm |
Cable Protector 4- 1/2R34-37 |
4-1/2" |
Round |
Ø34-37mm |
Cable Protector 4- 1/2R38-42 |
4-1/2" |
Round |
Ø38-42mm |
Cable Protector 4-1/2F11/34 |
4-1/2" |
Flat |
11mm SQUARE |
Cable Protector 4- 1/2F16-19/60 |
4-1/2" |
Flat |
16-19mm SQUARE |
Cable Protector 4- 1/2F19-23/60 |
4-1/2" |
Flat |
19-23mm SQUARE |
Cable Protector 5- 1/2R6-8 |
5-1/2" |
Round |
Ø6-8mm |
Cable Protector 5- 1/2R34-37 |
5-1/2" |
Round |
Ø34-37mm |
Cable Protector 5- 1/2R38-42 |
5-1/2" |
Round |
Ø38-42mm |
Cable Protector 5-1/2F11/34 |
5-1/2" |
Flat |
11mm SQUARE |
Cable Protector 5- 1/2F11-16/56 |
5-1/2" |
Flat |
11-16mm SQUARE |
Cable Protector 5- 1/2F16-19/70DUAL |
5-1/2" |
Flat |
19-23mm SQUARE |
Cable Protector 7R6-8 |
7" |
Round |
Ø6-8mm |
Cable Protector 7F11/34 |
7" |
Flat |
11mm SQUARE |
