产品介绍

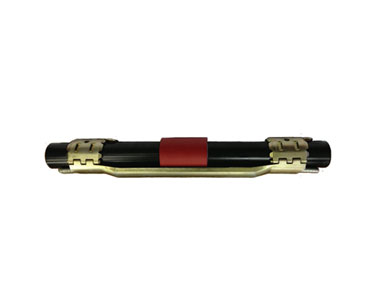

跨接箍保护器广泛应用于各种规格的API油管的接箍处，能够有效地保护井下多种规格的ESP动力电缆、控制线、集成管束、化学药剂注入管线等不受损伤，实现安全、快速、高效的地将保护线束固定并运送到井下
特点：
所有保护器采用化学药剂防腐与镀锌防腐，抗腐蚀能力更强；
每个夹紧夹各有两个预变形装置，使保护器与油管夹紧更牢固可靠；
保护管束通道弹性设计，是的管束夹紧可靠且不损伤管束；
锥销设计有防脱落凸点，可有效防止保护器脱离油管
规格
材料可根据客户需求采用低碳钢或不锈钢。
并可根据不同工况要求设计开发多通道保护器，从而实现有效隔离多种管线。
Description | Tube Size | Cable Type | Cable Size |
Cable Protector 2- 3/8R6-8 | 2-3/8" | Round | Ø6-8mm |
Cable Protector 2- 3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
Cable Protector 2- 3/8R32-34 | 2-3/8” | Round | Ø32-34mm |
Cable Protector 2- 7/8R6-8 | 2-7/8" | Round | Ø6-8mm |
Cable Protector 2- 7/8R30-33 | 2-7/8" | Round | Ø30-33mm |
Cable Protector 2- 7/8R34-37 | 2-7/8" | Round | Ø34-37mm |
Cable Protector 2- 7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
Cable Protector 2- 7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
Cable Protector 2- 7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
Cable Protector 3- 1/2R6-8 | 3-1/2" | Round | Ø6-8mm |
Cable Protector 3- 1/2R30-33 | 3-1/2" | Round | Ø30-33mm |
Cable Protector 3- 1/2R34-37 | 3-1/2" | Round | Ø34-37mm |
Cable Protector 3- 1/2R38-42 | 3-1/2" | Round | Ø38-42mm |
Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
Cable Protector 3- 1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
Cable Protector 3- 1/2F19-23/70 | 3-1/2" | Flat | 19-23mm SQUARE |
Cable Protector 4- 1/2R6-8 | 4-1/2" | Round | Ø6-8mm |
Cable Protector 4- 1/2R34-37 | 4-1/2" | Round | Ø34-37mm |
Cable Protector 4- 1/2R38-42 | 4-1/2" | Round | Ø38-42mm |
Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
Cable Protector 4- 1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
Cable Protector 4- 1/2F19-23/60 | 4-1/2" | Flat | 19-23mm SQUARE |
Cable Protector 5- 1/2R6-8 | 5-1/2" | Round | Ø6-8mm |
Cable Protector 5- 1/2R34-37 | 5-1/2" | Round | Ø34-37mm |
Cable Protector 5- 1/2R38-42 | 5-1/2" | Round | Ø38-42mm |
Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
Cable Protector 5- 1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
Cable Protector 5- 1/2F16-19/70DUAL | 5-1/2" | Flat | 19-23mm SQUARE |
Cable Protector 7R6-8 | 7" | Round | Ø6-8mm |
Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
